EER to Relational Mapping
In today's lab, you will practice creating a relational model from an EER model. You may work alone or in a pair.
The instructions below follow the mapping categories documented in the EER to Relational Mapping slides.

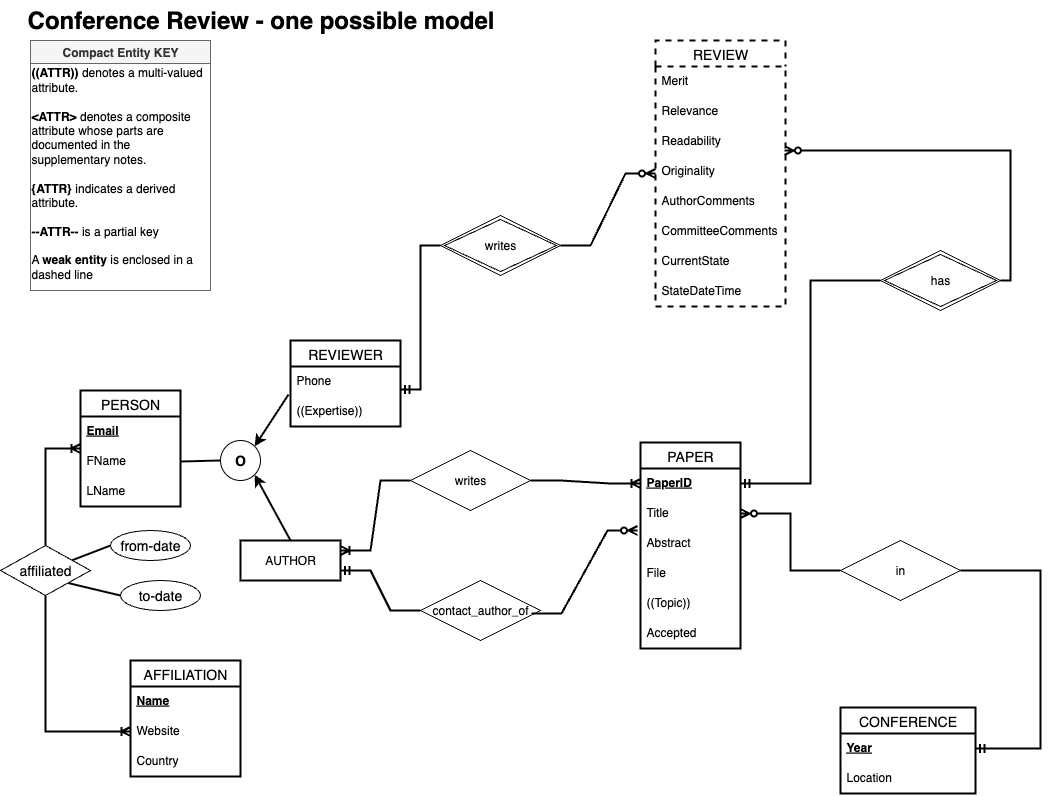

Use the Conference Review EER model below to create a relational model (see data requirements). The model is in the same style you were required to use in GP2.
Like all design processes, the process of creating a relational model is cyclical, with refinements at each step. However, transforming an EER model into a relational model follows well-defined rules, with only a few decisions needed.
