Homework: HTML and CSS


1 Purpose

The purpose of this assignment is to help you acquire (and demonstrate that you have acquired) some of the basic HTML/CSS knowledge and skills that you will need in order to understand secure programming for the WWW.

2 Overview

For this assignment you must create a document (in HTML) and two stylesheets (in CSS), and "publish" the document on stu.

The document must contain a title (containing your name), a picture of you, information about your academic pursuits, information about the college/university courses you have taken, and a link to your college/university. The courses must be grouped into "Major Courses" and "Other Courses". You must have at least two courses in each "grouping".

The document will only be "linked" to a single stylesheet at any point in time, but it must work properly (without any changes other than to the link element) with both stylesheets.

Note: If you are concerned about privacy, all of the information may be "fake". However, the information must be realistic.

3 Requirements

The file named academics.html must satisfy the following requirements:

The file named traditional.css must satisfy the following requirements:

The file named modern.css must satisfy the following requirements:

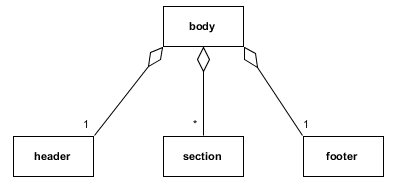

Note that the requirements specification for academics.html makes use of some simple UML class diagrams. All you need to know about UML for this assignment is: a rectangle denotes a class of objects (in this assignment, an HTML tag), a line with a diamond-shaped head denotes an aggregation relationship (in this assignment, a containment relationship), and the symbols at the end of lines denote multiplicity. So, for example, the following UML diagram


can be interpreted as follows:

The body element contains exactly one header element, multiple section elements, and exactly one footer element.

4 Testing Using stu

There are several things to keep in mind when you test using stu.cs.jmu.edu (which we will call stu for short).

First, in your home directory on stu you should have a directory named www. Any file you put in that directory will be available through the WWW server at w3stu.cs.jmu.edu. So, for example, if I put academics.html in the www directory in my account on stu, I could access it from the following URL: w3stu.cs.jmu.edu/bernstdh/academics.html.

Second, the server needs to be able to provide the browser with every file that it needs (including the HTML file, the CSS file, any images, etc...). Hence, it must have permission to read them. You can check this by manually requesting each file (by entering its URL). For example, you can request an image without requesting the HTML file that uses it.

Third, modern browsers cache files (on local storage) whenever possible to avoid downloading them multiple times. This can be a problem when testing. For example, you might make a change in an HTML file and then re-load it but the browser might "out smart" you and use the cached version. Hence, it is important to either clear the cache between tests or bypass the cache (usually by pressing shift while left-clicking the reload button).

5 Reminders

Remember to read and follow all policies related to homework assignments (including style guides, submission requirements, collaboration rules, etc...).

6 Hints

While you are not required to use a particular tool set, the right tools are essential. For this assignment, you should consider using the developer tools in Chrome or Firefox; they are very useful when debugging both HTML and CSS. For others, see the course "Tools" page.

7 Submission

You must "print" academics.html from your browser twice, once when it is associated with traditional.css and once when it is associated with modern.css. You must submit both versions, each in it's own PDF file, one named academics-traditional.pdf and one named academics-modern.pdf. (Notes: 1. Your browser might not print background images/colors by default. Background image/color printing is usually enabled from the "Print" or "Page Setup" menu. 2. Help with "printing" to a PDF file is available or you can search the WWW for "Save As PDF").

In addition, you must submit documents that demonstrate that your files satisfy the requirements. That is, you must create a checklist from the requirements documents and put a check-mark next to the requirements your files satisfy. (Of course, your files should satisfy all of them.)

Finally, your HTML document, styled with modern.css must be publicy available from your stu account. It must be named academics.html and must be in your www/h1 directory. Bothe modern.css and traditional.css must also be in that directory (or a subdirectory of that directory).

8 Visibility

Your deliverable will be public (i.e., available to both other students in the course and the general population).

9 Other Policies

Make sure you read, understand, and follow all other course policies associated with homework assignments. (See the "Policies" link above.)

Copyright 2015
