Gaining a Deeper Understanding of C


1 Purpose

The purpose of this assignment is to help you understand some of the details of programming in C so that you can then understand the various kinds of vulnerabilities that arise in C programs.

2 Part 1

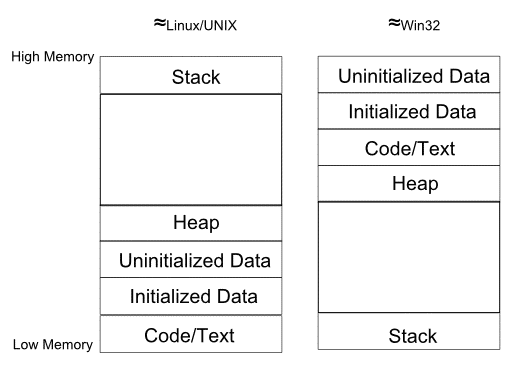

Recall that the memory associated with a process is organized as follows:

For Part 1, you must write a small C program that you can use to build a model of memory on your platform. Specifically, you must create a file named memory.c that, when executed, prints all of the following addresses (properly labeled) to the console.

It may print other addresses as well (if you find them helpful). For example, you may want to put more than one thing on the heap, or you may want to print the address of a local variable.

memory.c must have a function with the signature int main(int argc, char* argv[]). It may have other functions as well.

Hints: You will probably want to declare variables of various kinds and print their addresses (perhaps using the "%p" conversion specifier), but be careful since the order of the statements will matter. You will probably also want to use the address of at least one of the formal parameters of main. Obviously, if the addresses do not conform to what you know about process memory, you should re-think what you are doing and how you are doing it.

3 Part 2

For Part 2, you must interpret a small disassembled C program, and explain what happens when one function calls another.

3.1 Getting Started

To get started, you must create a file named simple.c that contains the following C program.
#include <stdio.h>
#include <string.h>

void foo(const char* input)
{
  printf("In foo()");
}


void bar(void)
{
  printf("In bar()");
}


int main(int argc, char* argv[])
{
  foo("CS531");

  return 0;
}


Then, you must compile the program and execute it using gdb. Next, in gdb, enter the commands disassemble main and disassemble foo. Which will provide you with two different assembler dumps.

3.2 Tasks

Create a document that contains the two assembler dumps and annotate each statement (i.e., explain the purpose of each statement in the assembler dumps).

4 Part 3

For Part 3, you must create a program that has a buffer overflow vulnerability and then attempt to take advantage of that vulnerability.

4.1 Getting Started

To start, copy simple.c to vulnerable.c. Next, replace the call to print in the foo function in vulnerable.c with code that assigns characters to an array of char and then copies the array pointed to by the parameter input into that array. For example, your foo function might look like the following.
void foo(const char* input)
{
  char buf[12] = {"\x99\x99\x99\x99\x99\x99\x99\x99\x99\x99\x99\x99"};

  // This will overrun the buffer if the array pointed to by
  // input is more than 12 characters long
  strcpy(buf, input);
}

4.2 Causing Harm - Availability

Modify the main function of vulnerable.c in such a way that the buffer overflow vulnerability causes the program to crash. Then, create a document that carefully explains how the vulnerability was exploited and why the program crashed.

Note that you may need to disable one or more security features of your development and/or run-time environment in order to exploit the vulnerability. If so, your document must include an explanation of what features were disabled, how they were disabled, and why they needed to be disabled. It should also include a careful description of your development and run-time environment (so that the exploit can be replicated).

4.3 Causing Harm - Integrity

Now, modify the main function of vulnerable.c in such a way that the buffer overflow vulnerability causes the return from the call to foo to execute the function bar.

Again, you may need to disable security features in order to exploit the vulnerability in this way. Again, if so, document what you did and why.

4.4 A Caveat

Depending on your development environment, you may find it difficult to exploit the buffer oveflow vulnerability in vulnerable.c. If so, document every attempt, explain why you thought the attempt would exploit the vulnerability, and why, in the end, it did not. (Rememember, the point of this assignment is not to verify that you can attack a system but to help you write code that is not vulnerable to attacks. So, as long as you understand the issues, you will have succeeded at this assignment.)

5 Submission

You must submit the following (individual documents, not in a .zip file) using Canvas.
  1. A document named part1.pdf containing the source code for memory.c
  2. A document named part2.pdf containing the annotated assembler dumps of simple.c.
  3. A document named part3a.pdf containing vulnerable.c, the exploit code that caused the program to crash, a description of that code, and the changes you needed to make to the environment.
  4. A document named part3b.pdf containing vulnerable.c (if you modified it) exploit code that caused the program to execute bar, a description of that code, and the changes you needed to make to the environment.

6 A Reminder

Remember to re-enable any security features that you had to disable to complete this assignment.

7 Visibility

Your answers may be made available to other students in the course.
